RAmk2/RA

Optional Equipment

RAmk2/RA Torque Attachments

Direction

RoHS For auxiliary tasks Plate Manual Loading Rotary Type

Features

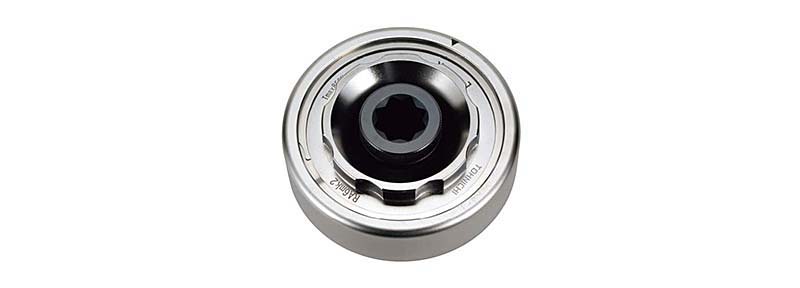

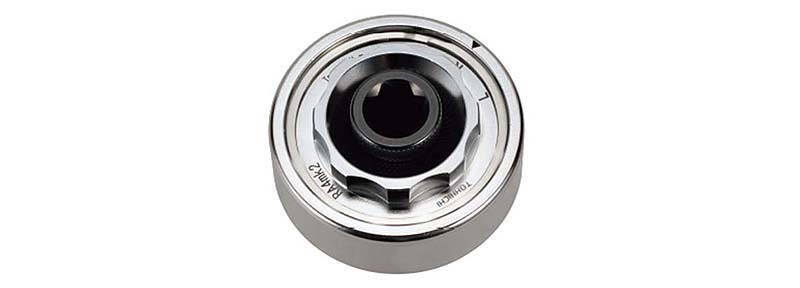

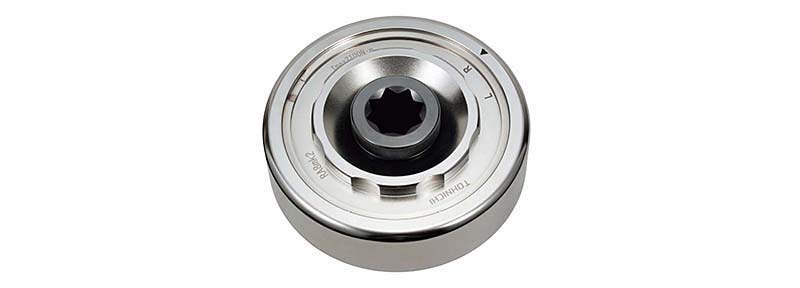

RAmk2/RA helps to set a torque wrench in the proper position on the tester by using a 3.75 degree gear action.
Makes easy to set a torque wrench on a tester.
With bidirectional knob. (RAmk2)
With bidirectional lever. (RA12)

RA3mk2

RA4mk2

RA6mk2

RA8mk2

RA12

Specifications

Model			RA3mk2	RA4mk2		RA6mk2	RA8mk2	RA12
DIMENSION [mm]	SQ.DRIVE	□a	9.53	12.7		19.05	25.4	38.1
		□b
	HEIGHT	H	37.3	52.5		69.3	92.8	111
	THICKNESS	h	26.3	37.1		47.8	64.3	68.7
	OUTER DIA.	D	55	70		115	161	234
ALLOWABLE TORQUE [N・m]			70	220		850	2100	3000
WEIGHT [kg]			0.3	0.6		2.3	6.3	12.6

Dimensions

product dimensions

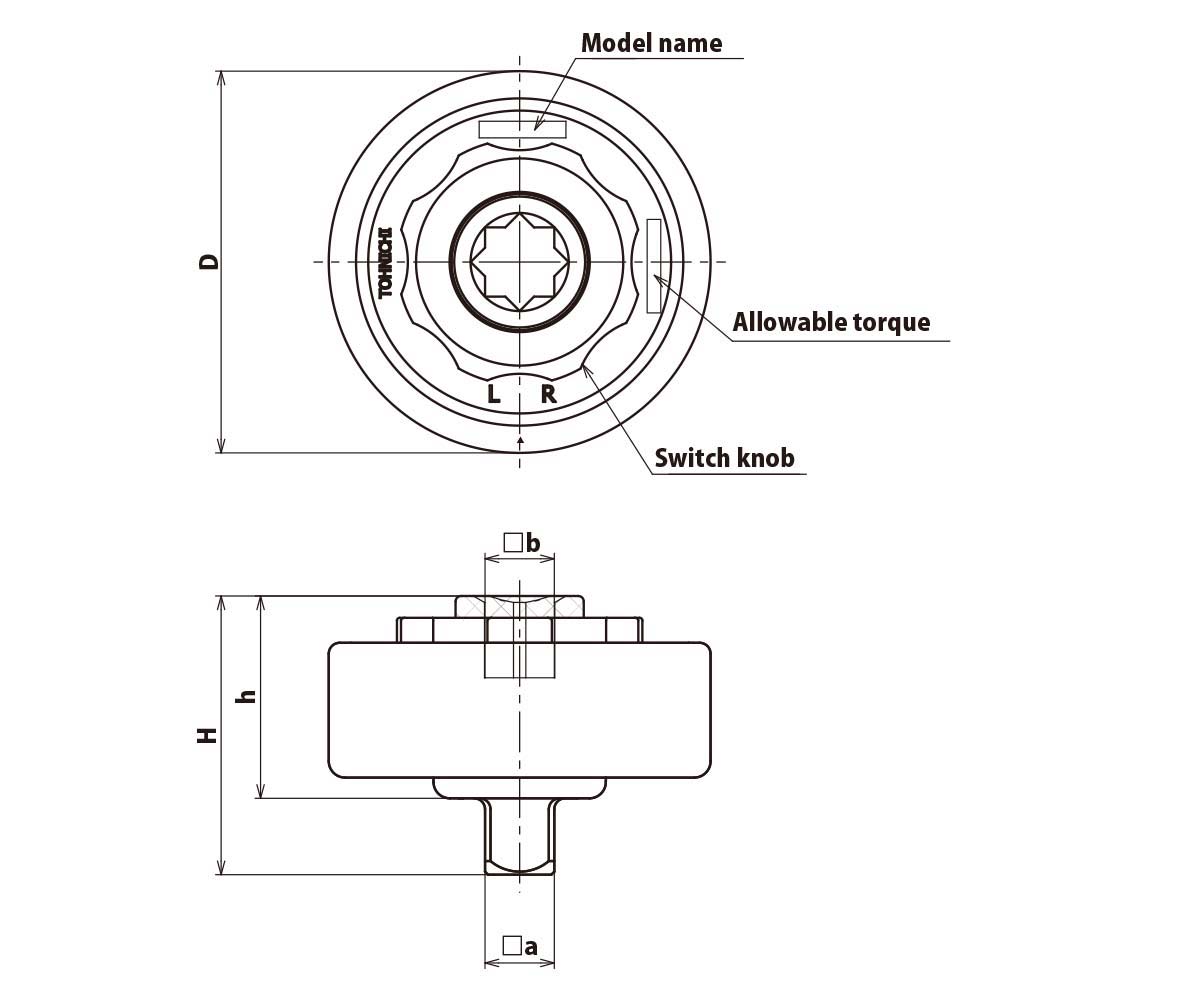

RAmk2

product dimensions

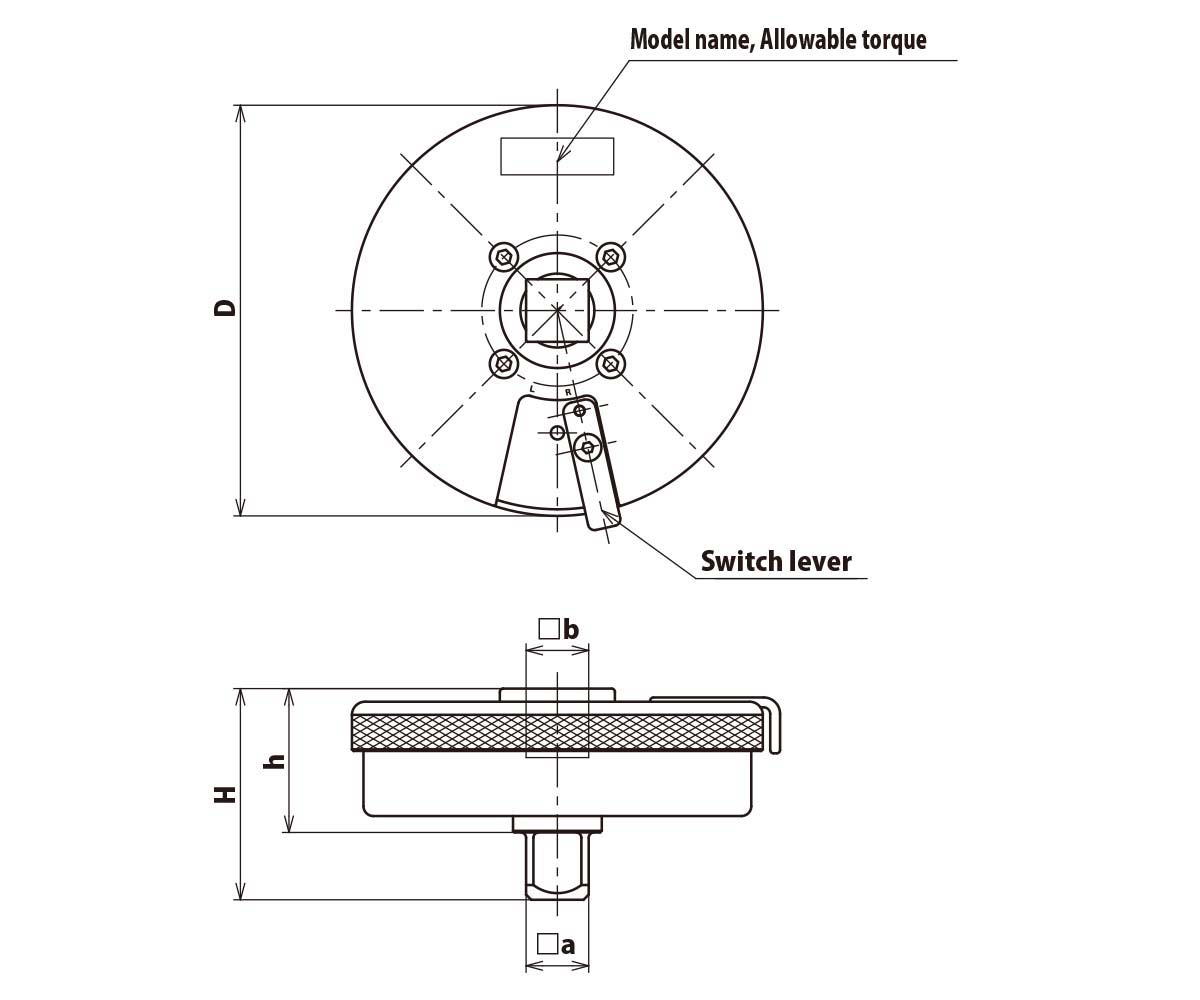

RA
