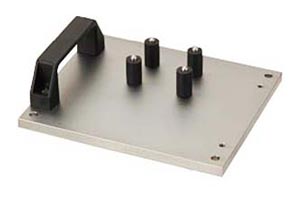

Option for ATG • ATGE/BTGE: Table attachment

Use clamps Φ10 to 58 and ATGE/BTGE like a torque meter.

Part #	Applicable Model
800	ATGE-G/BTGE-G

Option for ATG･ATGE/BTGE: Battery pack

By drawing power from two AA batteries, it can be used continuously for about 50 hours.

Model	Applicable Model
BP-C1	ATGE-G/BTGE-G

Option for ATG･ATGE/BTGE: Calibration adapter

An adapter used when mounted on ATGTCL/BTGTCL calibration kit.

Part #	Applicable Model
806	ATGE-G
807	BTGE-G

Option for ATG･ATGE/BTGE: Resin chuck

This resin chuck helps prevent scratches during tasks requiring delicate handling.

Part #	Applicable Model
322	ATG/ATGE-G

Option for ATG･ATGE/BTGE: Measuring stand

ATGE/Stand to secure BTGE.

Part #	Applicable Model
808	ATGE-G
809	BTGE-G

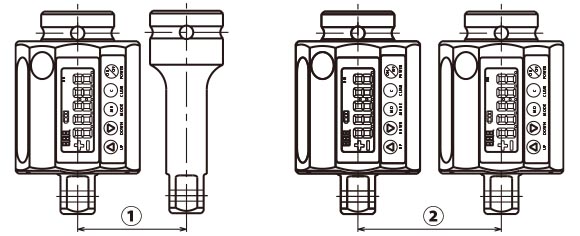

Extension bar for ST2

Part #		283	281	247	248	249
Applicable Model		ST10N2 (-BT)	ST20N2 (-BT)	ST50N2 (-BT) ST100N2 (-BT) ST200N2 (-BT)	ST500N2 (-BT)	ST10000N2 (-BT)
Applicable Model	1	40			55	60
	2	50			70

Note: ST extension bar (option) is designed with the same length as ST so that torque checking of a nut runner can be done easily.

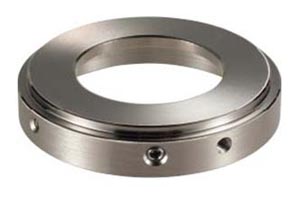

Option for TDT: Loading adapter for TDT/TDT2

Part #	485	486
Description	Adapter for attaching loading device	Adapter set for attaching loading device
Components	Adapter, screw x 3	Adapter, screw x 3, Fixing knob, clamping tool, bit x 2
Applicable Model	TDT/TDT2

Note: 1. No.485 is required to use TDTLA3 with TDT/TDT2. 2. No.486 is required to use STA/LTA with TDT/TDT2.

Option for TDT: Hex adapter

Part #	480	481	482	483	484
Sq. Drive	6.35
Hex Size	W5.5•8•12	W6•10•13	W7•11•14	W16•19•22	W17•21•24
Applicable Model	TDTLA

Hex adapter

Spanner ring head-shaped torque wrench, such as SP • RSP for the tester.

Part #	285	286	287	288
Sq. Drive	9.35	12.7
Hex Size	W7•8•9	W16•18•21	W17•22•27	W19•24•30
Applicable Model	DOTE, DOT, TCC, TF

Note: For replacement hex adapters that are standard accessories, see DOTE4-G.

Hexagon head adapter

A hex adapter able to be used with a selection of commonly used hex sizes.

Part #	282	280
Sq. Drive	9.53	12.7
Hex Size	W8, 10, 12, 13, 14, 17	W8, 10, 12, 13, 14, 19, 22
Applicable Model	LC20N3-G	LC200N3-G

Note: Assembled with 3 kinds of Hex adapter chosen from standard accessory.

DA Down Adapter

Square drive that is one size smaller, making it easier to use than a conventional socket due to the height.

Model	Catalog No.	Dimension [mm]				Capacity	Weight	Applicable Models
		Square (Male)	Square (Female)	Height	Outer Dia.	[N.m]	[g]
DA3-2	296	9.53	6.35	12	13	50	5	TCC, DOTE, DOT, TF, LC
DA4-3	297	12.7	9.53	15	18	200	11
DA6-4	298	19.05	12.7	19	28	750	34
DA8-6	299	25.4	19.05	26	35	2100	696
DA12-8	300	38.1	25.4	44	55	3000	320

RA ratchet adapters

More Information

Model			RA3mk2	RA4mk2		RA6mk2	RA8mk2	RA12
DIMENSION [mm]	SQ.DRIVE	□a	9.53	12.7		19.05	25.4	38.1
		□b
	HEIGHT	H	37.3	52.5		69.3	92.8	111
	THICKNESS	h	26.3	37.1		47.8	64.3	68.7
	OUTER DIA.	D	55	70		115	161	234
ALLOWABLE TORQUE [N・m]			70	220		850	2100	3000
WEIGHT [kg]			0.3	0.6		2.3	6.3	12.6

Extension bar for ST2, ST3

Part #		283	281	247	248	249
Applicable Model		ST10N2(3-G) (-BT)	ST20N2(3-G) (-BT)	ST50N2(3-G) (-BT) ST100N2(3-G) (-BT) ST200N2(3-G) (-BT)	ST500N2(3-G) (-BT)	ST1000N2(3-G) (-BT)
Min. Wheel Base [mm]	1	40			55	60
	2	50			70

Note: ST extension bar (option) is designed with the same length as ST so that torque chcking of a nut runner can be doe easily.

Option for TT2000: Battery built-in case

Specification	8h USAGE,4.5h CHARGE
Dimension	H160 x W246 x D246 mm
Weight	4.9 kg

Option for TT2000: Portable battery

Specification	2.5h USAGE,1.5h CHARGE
Dimension	H191 x W102 x D33 mm
Weight	0.6 kg

Option for TT2000: Ultrasound sensor

Model	Applicable Bolt
5C4.8N	More than M6, L1 ⟨ 80 mm	Made-to-order
5C6.4N	More than M8, L1 ⟨ 50 cm	Made-to-order
5C12.7N	More than M14, L1 ⟨ 2 m	Made-to-order
5C19.1N	More than M20, L1 ⟨ 4 m	Made-to-order

Option for TT2000: Axial Tension Calibrator

Model Name	AFC-20-G
Measurement Bolt	Under Ø20 mm, tightening light 80 ~ 300mm
Maximum Tension	200 kN
Weight	37 kg
Dimension	H435 x W300 x D270 mm
1 digit	0.1 kN
