TF

Torque Tester/Checker

TF Torque Wrench Tester

Direction

For calibrations Digital Electric Power Direct Reading Fully Automatic

Features

Central torque management system. Automatic measurement, automatic judgment, etc.
View measurement information via computer monitor.
Register torque wrench test information to start automatic measurement and judgment by registered instructions.
Peripheral equipment can be attached easily.

TF2000N

Specifications

Accuracy ± 1%+1digit
MODEL				TF200N		TF500N		TF1000N			TF2000N			TF3000N
CH				1	2	1	2	1	2	3	1	2	3	1	2	3
TORQUE RANGE ［N • m］			MIN.～MAX.	5～200	0.5～20	20～500	2～50	25～1000	5～200	0.5～20	100～2100	20～500	2～50	200～3000	100～2100	20～500
TORQUE RANGE ［N • m］			1 DIGIT	0.05	0.005	0.2	0.02	0.25	0.05	0.005	1	0.2	0.02	1	1	0.2
TORQUE RANGE [kgf • m]			MIN.～MAX.	0.5～20	0.05～2	2～50	0.2～5	2.5～100	0.5～20	0.05～2	10～210	2～50	0.2～5	20～300	10～210	2～50
TORQUE RANGE [kgf • m]			1 DIGIT	0.005	0.0005	0.02	0.002	0.025	0.005	0.0005	0.1	0.02	0.002	0.1	0.1	0.02
TORQUE RANGE [lbf • ft]			MIN.～MAX.	5～140	0.5～14	20～370	2～37	25～700	5～140	0.5～14	100～1500	20～370	2～37	200～2000	100～1500	20～370
TORQUE RANGE [lbf • ft]			1 DIGIT	0.05	0.005	0.2	0.02	0.25	0.05	0.005	1	0.2	0.02	1	1	0.2
TORQUE WRENCH MAX. EFFECTIVE LENGTH L［mm］				1550	1480	1550	1480	1650	1550	1480	2150	1550	1480	2650	2150	1550
INLET DRIVE □a［mm］				12.7	9.53	19.05	9.53	25.4	12.7	9.53	25.4	19.05	9.53	38.1	25.4	19.05
DIMENSION ［mm］		OVERALL LENGTH	L'	1860				2160			2660			3160
		OVERALL WIDTH	B	550
		OVERALL HEIGHT	H	930
WEIGHT ［kg］				240		315		380			415			450
ACCESSORIES ［mm]		RATCHET ADAPTER SQ. （MALE-FEMALE）		□12.7 □9.35		□19.05 □9.53		□25.4 □12.7 □9.53			□25.4 □19.05 □9.53			□38.1 □25.4 □19.05
		DOWN ADAPTER SQ. （MALE-FEMALE）		□12.7 - □9.53 □9.53 - □6.35		□19.05 - □12.7 □9.53 - □6.35		□25.4 - □19.05 □12.7 - □9.53 □9.53 - □6.35			□25.4 - □19.05 □19.05 - □12.7 □9.53 - □6.35			□38.1 - □25.4 □25.4 - □19.05 □19.05 - □12.7
		ADAPTER SQ.（MALE）- HEX（FEMALE）		□12.7 - W17 • 22 • 27 □12.7 - W19 • 24 • 30 □9.53 - W10 • 13 • 19 □9.53 - W12 • 14 • 17		□19.05 - W17 • 22 • 27 □19.05 - W19 • 24 • 30 □9.53 - W10 • 13 • 19 □9.53 - W12 • 14 • 17		□25.4 - W36 • 46 □25.4 - W41 • 50 □12.7 - W17 • 22 • 27 □12.7 - W19 • 24 • 30 □9.53 - W10 • 13 • 19 □9.53 - W12 • 14 • 17			□25.4 - W36 • 46 □25.4 - W41 • 50 □19.05 - W22 • 27 • 29 □19.05 - W30 • 32 • 36 □9.53 - W10 • 13 • 19 □9.53 - W12 • 14 • 17			□12.7 - W10 • 13 • 19 □12.7 - W12 • 14 • 17 □25.4 - W36 • 46 □25.4 - W41 • 50 □19.05 - W22 • 27 • 29 □19.05 - W30 • 32 • 36

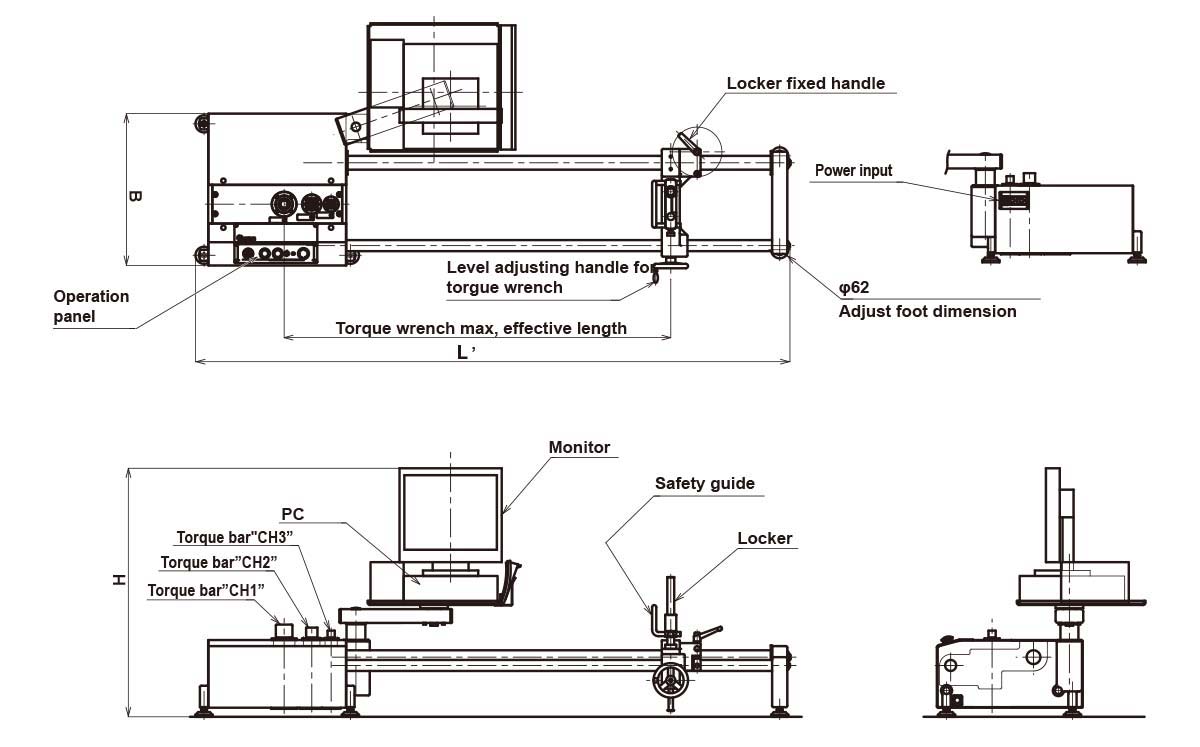

Dimensions

product dimensions

TF1000N

Accessories

accessoriesItem

Ratchet Adapter
