RSP Preset Click Type Torque Wrench
Direction
RoHS
Assembly
Preset
Ring Head
Features
- Special torque wrench for single bolt tightening.
- Preset style.
- Preset style with ring head.
- Ring head prevents the wrench from slipping off the bolt.
- Applicable in confined spaces.
- The set torque cannot be changed without using a special tool (sold separately), preventing the operator from changing torque by mistake.
- A clear "click" sound signals tightening completion upon reaching the set torque.
- A wide selection of standard models backed up by a rapid delivery system
- Applicable for international use including the EU region.
- Compliant with ISO 6789 Type II Class B calibration procedures.
Specifications
| MODEL | RSP8N2 | RSP19N2/RSP19N2-MH ( ) dimension is -MH |
RSP38N2/RSP38N2-MH ( ) dimension is -MH |
RSP67N2/RSP67N2-MH ( ) dimension is -MH |
||||||||||||||
| S.I.RANGE[N • m] | 2~9 | 4~14.1 | 4~21 | 9~24.2 | 9~29.5 | 9~42 | 14~59 | 14~73 | ||||||||||
| METIRC RANGE[kgf • cm] | 20~90 | 40~141 | 40~210 | 90~242 | 90~295 | 90~420 | 140~590 | 140~730 | ||||||||||
| WIDTH ACROSS FLATS [mm] | 8 | 10 | 8 | 10 | 13 | 10 | 12 | 13 | 14 | 16 | 17 | 14 | 16 | 17 | 18 | 19 | ||
| MAX. HAND FORCE [N] | 62 | 82 | 122 | 128 | 156 | 222 | 232 | 287 | ||||||||||
| DIMENSION [mm] |
EFFECTIVE LENGTH |
L | 146 | 173 | 190 | 255 | ||||||||||||
| OVERALL LENGTH |
L' | 192 | 193 | 220 (220) |
221 (221) |
223 (223) |
244 (244) |
247 (247) |
246 (246) |
247 (247) |
248 (248) |
312 (311) |
313 (312) |
314 (313) |
315 (314) |
|||
| HEAD | C | 15 | 17.5 | 15 | 17.5 | 21.5 | 17.5 | 20.4 | 21.5 | 23 | 25.5 | 26.5 | 23.5 | 26.5 | 27.5 | 28.5 | 29.5 | |
| b | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||||||||||
| h | 21 | 20 | 22 | 23 | 24 | 25 | 26 | 27 | ||||||||||
| ℓ1 | 36 | 40 | 45 | 53 | ||||||||||||||
| ℓ2 | 0.8 | 1 | 0.8 | 1.1 | 1 | 1.3 | 1.4 | 1.3 | 1.6 | 1.7 | ||||||||
| BODY | m | 19 | 25.5 | |||||||||||||||
| n | 9.2 | 11.2 | ||||||||||||||||
| d | 15 | 20 | ||||||||||||||||
| D | 24 | 29 (15) |
30 (20) |
|||||||||||||||
| WEIGHT [kg] | 0.15 | 0.21 | 0.38 | 0.47 | ||||||||||||||
| THRUSTRING TOOL [OPTIONAL ACCESSORY] |
No.931 | No.930 | ||||||||||||||||
| Accuracy ±3% | ||||||||||||||||||
| MODEL | RSP120N2/RSP120N2-MH ( ) dimension is -MH |
RSP160N2/RSP160N2-MH ( ) dimension is -MH |
RSP220N2/RSP220N2-MH ( ) dimension is -MH |
RSP310N2/RSP310N2-MH ( ) dimension is -MH |
|||||||||||||
| S.I.RANGE[N • m] | 24~100 | 24~120 | 30~160 | 45~220 | 65~255 | 65~310 | |||||||||||
| METIRC RANGE[kgf • cm] | 240~1000 | 240~1200 | 300~1600 | 450~2200 | 650~2550 | 650~3100 | |||||||||||
| WIDTH ACROSS FLATS [mm] | 17 | 18 | 19 | 21 | 22 | 19 | 21 | 22 | 24 | 22 | 24 | 27 | 24 | 27 | 30 | ||
| MAX. HAND FORCE [N] | 299 | 359 | 479 | 526 | 504 | 415 | |||||||||||
| DIMENSION [mm] |
EFFECTIVE LENGTH |
L | 334 | 334 | 418 | 615 | |||||||||||
| OVERALL LENGTH |
L' | 393 (393) |
394 (393) |
394 (394) |
396 (395) |
396 (396) |
395 (394) |
396 (395) |
396 (396) |
398 (397) |
480 (479) |
481 (480) |
483 (482) |
678 (678) |
680 (680) |
682 (681) |
|
| HEAD | C | 29.4 | 30.6 | 31.8 | 34 | 35 | 32.8 | 34 | 35 | 38 | 38.4 | 40 | 45 | 41.8 | 45 | 50 | |
| b | 12 | 13 | 13 | 15 | 13 | 15 | |||||||||||
| h | 28 | 29 | 29 | 31 | 29.5 | 32 | |||||||||||
| ℓ1 | 62.5 | 62.5 | 70 | 75 | |||||||||||||
| ℓ2 | 1.7 | 1.8 | 1.9 | 1.5 | 1.9 | 1.5 | 1.9 | 2.2 | 2 | 2.7 | 2.4 | 2 | 3 | ||||
| BODY | m | 28 | 28 | 35 | |||||||||||||
| n | 12.2 | 12.2 | 15 | ||||||||||||||
| d | 21.7 | 21.7 | 27.2 | ||||||||||||||
| D | 34 (21.5) |
34 (21.5) |
38 (27) |
||||||||||||||
| WEIGHT [kg] | 0.8 | 0.9 | 1.5 | 2 | |||||||||||||
| THRUSTRING TOOL [OPTIONAL ACCESSORY] |
No.930 | ||||||||||||||||
| Accuracy ±3% | |||||||||||||||||
Notes
Models RSP8N2 to RSP310N2 have a resin grip, while RSP2-MH has a metal grip.Dimensions

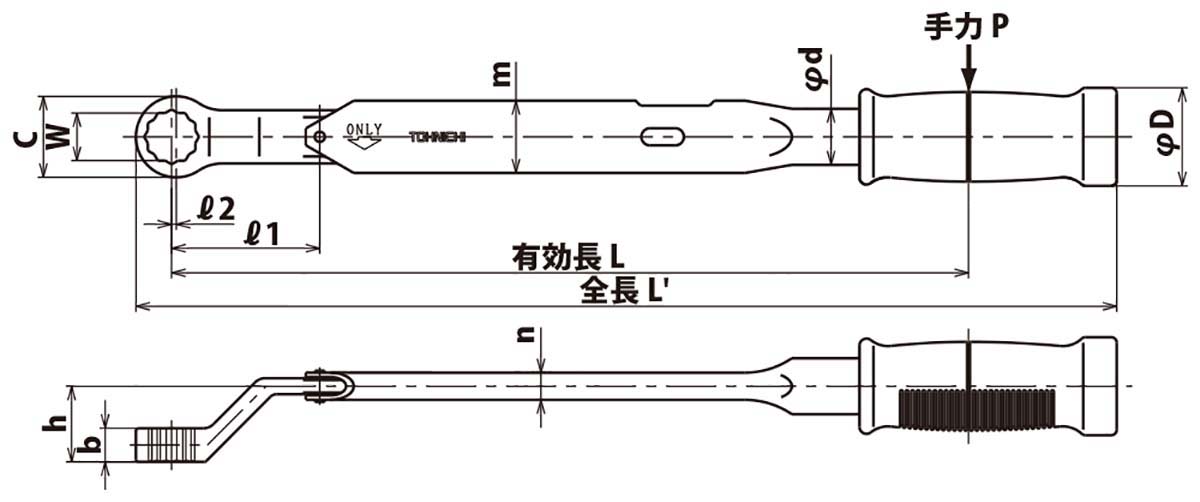

RSP8N2~310N2

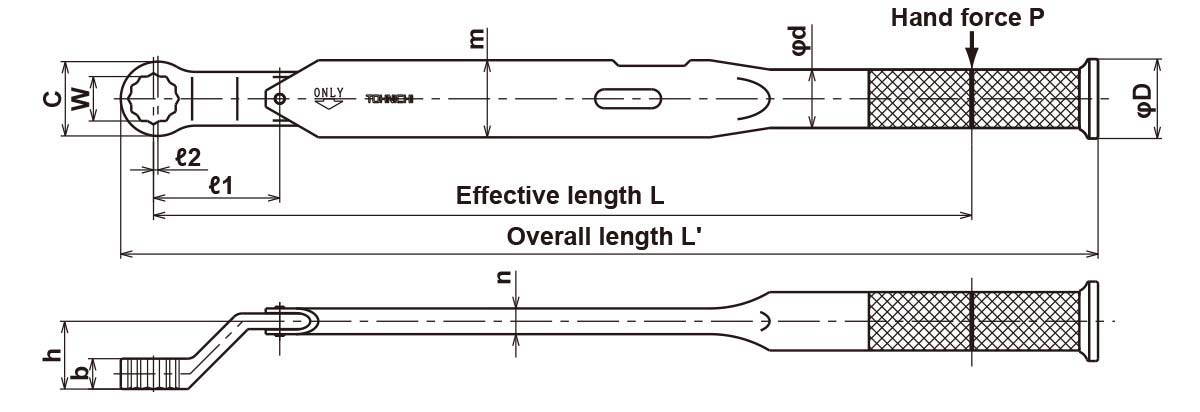

RSP2-MH
Adjusting Tools For QSP3
