Features

Wired Data-transfer torque wrench, CSPLD and CSPLDC connecting with Tohnichi CD5 display, OK/NG judgment LED lights can be performed on each operation.

• Specialized version of CSP Click Torque Wrench that captures actual applied torque value.
• Click wrench has torque sensor that is hard wired to torque display Model CD5.
• When wrench clicks at set torque, the applied torque value is shown on the display.
• Requires CD5 Compact Display to complete system; CSPLD or CSPLDC wrench and CD5 are calibrated together at time of order. Calibration is required if wrench is changed or torque setting changed.

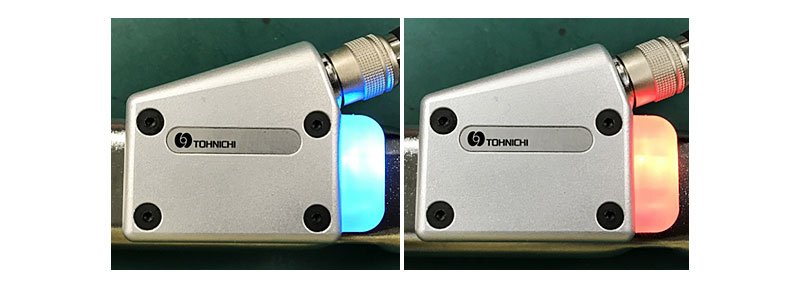

• Large LED judgment lights confirm OK-Blue or Hi/Lo NG-Red on the wrench for confirmation by user on the wrench.
• No batteries required. Power is supplied from the CD5 Display unit connection.
• Accepts Tohnichi Standard Interchangeable Head Types available in a wide range of styles and sizes.(see Accessories below)
• Compact Metal Module Case.
• Standard Series, covers range of 2N.m to 280N.m.
  • More than 280N.m size is special ordered upon request.

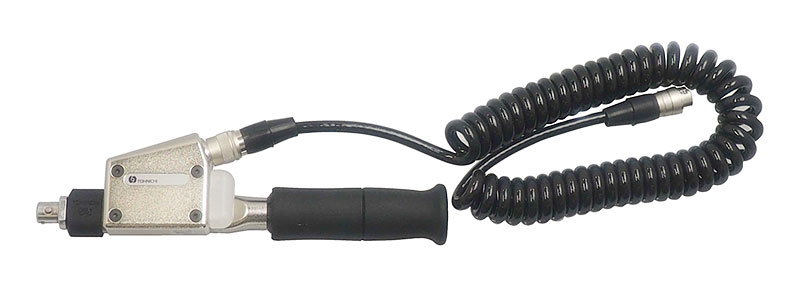

• Standard cables included: 30cm Coiled & 3m Straight Cables. Additional cable options are available.
• CSPLD has a fixed cable on wrench to secure wrench to station. CSPLDC features Quick Connect Cable Style which allows for easy exchange or replacement of the cable.
