SH Open Wrench Interchangeable Head

Accessories

SH Open Wrench Interchangeable Head

SH Open Wrench Head (Inches)

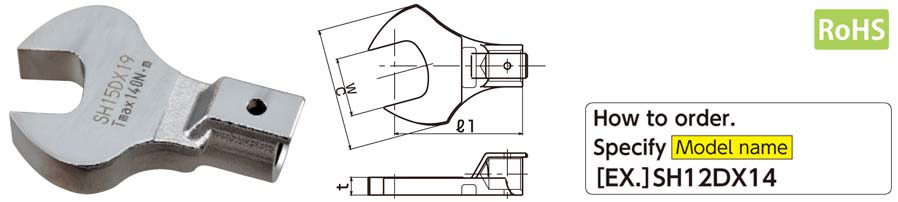

SH open heads can be used for piping tasks that do not permit the use of sockets or ring heads. Inch Size also available.
Ask for inventory status and price.

carousel 1

Inches Metric

Head Diameter Size	Model Head Size x Width (in.)	Allowable Torque Nm	Outside Width mm [C]	Thickness mm [t]	Availability
8D	SH8DX1/4	2.5	15	3.5	Standard
	SH8DX5/16	7	20	4.5
	SH8DX3/8	14	25	5.5
	SH8DX7/16	15	27
	SH8DX1/2		29
	SH8DX9/16		29	6.5
10D	SH10D X 5/16	20	28
	SH10D X 3/8	20	28
	SH10D X 7/16	25	32
	SH10D X 1/2		32
	SH10D X 9/16		39
	SH10D X 5/8	*	*	*	Upon Request
12D	SH12D X 5/16	*	*	*	Upon Request
	SH12D X 3/8	12	24	5	Standard
	SH12D X 7/16	20.5	31	6.5
	SH12D X 1/2	29.5	32	6.5
	SH12D X 9/16	59	40	10
	SH12D X 5/8	59	40	10
	SH12D X 11/16	70	41	11
	SH12D X 3/4	*	*	*	Upon Request
	SH12D X 13/16	*	*	*	Upon Request
15D	SH15D X 1/2	59	38	8	Standard
	SH15D X 9/16	140	51	13
	SH15D X 5/8
	SH15D X 11/16
	SH15D X 3/4
	SH15D X 13/16
	SH15D X 7/8
	SH15D X 15/16		60	12
	SH15D X 1
	SH15D X 1-1/16
	SH15D X 1-1/8
	SH15D X 1-3/8
	SH15D X 1-1/4
	SH15D X 1-5/16		66
	SH15D X 1-3/8		66
	SH15D X 1-7/16		69
	SH15 D X 1-1/2		69
19D	SH19D X 5/8	*	*	*
	SH19D X 11/16	*	*	*
	SH19D X 3/4	*	*	*
	SH19D X 13/16	*	*	*
	SH19D X 7/8	*	*	*
	SH19D X15/16	200	60	15
	SH19D X 1
	SH19D X 1-1/16
	SH19D X 1-1/8		72	11
	SH19DX 1-3/16
	SH19D X 1-1/4
22D	SH22D X 3/4	*	*	*	Standard
	SH22D X 13/16	*	*	*
	SH22D X 7/8	*	*	*
	SH22D X 15/16	*	*	*
	SH22D X 1	*	*	*
	SH22D X 1-1/16	*	*	*
	SH22D X 1-1/8	*	*	*
	SH22D X 1-1/4	*	*	*	Upon Request
	SH22D X 1-5/16	*	*	*	Upon Request
