TP / DTF / TTF + ATF

Optional Equipment

TP / DTF / TTF + ATF Torque Attachments

RoHS For auxiliary tasks Dish with spring (TP) / 3-jaw chuck with (DTF) / Paul Clamp (TTF + ATF) 3-jaw Chuck

Features

Attachments to help achieve precise torque measurement.
Model TP can set joint coefficient by changing the combination of disc springs, so it can be used with the actual bolt of the pneumatic tool.
Three-jaw clamp of DTF is designed to adapt to varied shape of measuring objects.
TTF uses the same table as TM torque meter with adjustable 4 poles to clamp and hold object of any shape.

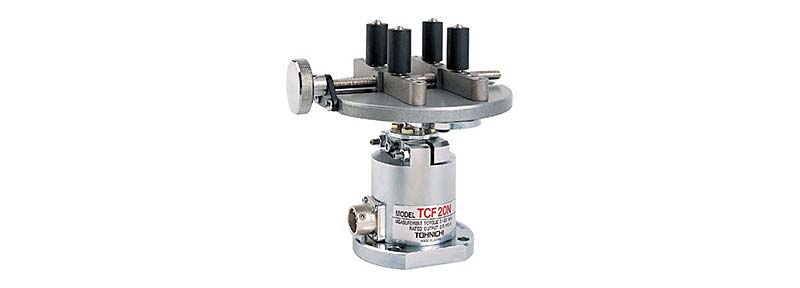

TP18N+TCF20N

DTF5-2+TCF20N

TTF11+ATF18+TCF20N

Specifications

MODEL					TP2.5N					TP18N			TP180N		TP1800N
S.I. RANGE［N • m］				MIN.～MAX.	0.25～2.5					1.8～18			18～180		180～1800
METRIC RANGE［kgf • cm］				MIN.～MAX.	2.5～25					18～180			180～1800		1800～18000
APPLICABLE TCF MODELS					TCF02N, 04N		TCF1N～4N		TCF10N～20N			TCF40N～200N		TCF400N～2000N
INLET IN	HEAD B OPPOSITE SIZE			8					13			24		50
	SMALL SCREW M			M4					M6			ー
IDLE RUNNING［rev］					5					4
	SQ. DRIVE		□a	6.35					9.53			12.7		25.4
DIMENSION ［mm］				ｈ	7.5					11			14		26.5
				H0	58					87			148		297.5
				H1	36					57			108		220
				H'	106.5		113		141			234		451
				ΦD0	18					35			65		140
				ΦD2	ー					20			36		55
WEIGHT［kg］					0.08					0.27			1.9		16.8

MODEL					DTF5-3										DTF5-2
CONNECTABLE TCF MODELS					TCF02N, 04N				TCF1N～4N					TCF10N～40N
CHUCK GRIP［mm］				Φd	Max. 5
	SQ. DRIVE		□a	6.35										9.53
DIMENSION ［mm］				ｈ	7.5										11
				H0	68.5										72
				H1	50
				H'	117				123.5					126
				ΦD0	33
				ΦD1	15										30
				ΦD2	ー										20
				T	11

MODEL				TABLE		TTF7				TTF11								TTF19
				ATTACHMENT		ATF18-2									ATF18			ATF18-2		ATF18
CONNECTABLE TCF MODELS						TCF02N, 04N		TCF1N～4N		TCF02N, 04N			TCF1N～4N		TCF10N～40N			TCF1N～4N		TCF10N～40N
CHUCK GRIP ［mm］				Φd0		10～70				14～110								18～190
				b1		12～53				14～90								20～154
				b2		16～60				17～85								20～140
TABLE ［mm］				Φd1		10				12								18
				ΦD0		70				110								180
				T0		15				18								24
	SQ. DRIVE			□a		6.35									9.53			6.35		9.53
DIMENSION ［mm］				ｈ		7.5									11			7.5		11
				H0		51.5				58.5					64			74.5		91
				H1		20				24								35
				H'		100		106.5		107			113.5		118			129.5		145
				ΦD1		15									29			15		29
				ΦD2		ー									20			ー		20
				ΦD3		20				30								36
				T1		6									19			6		19

Dimensions

product dimensions

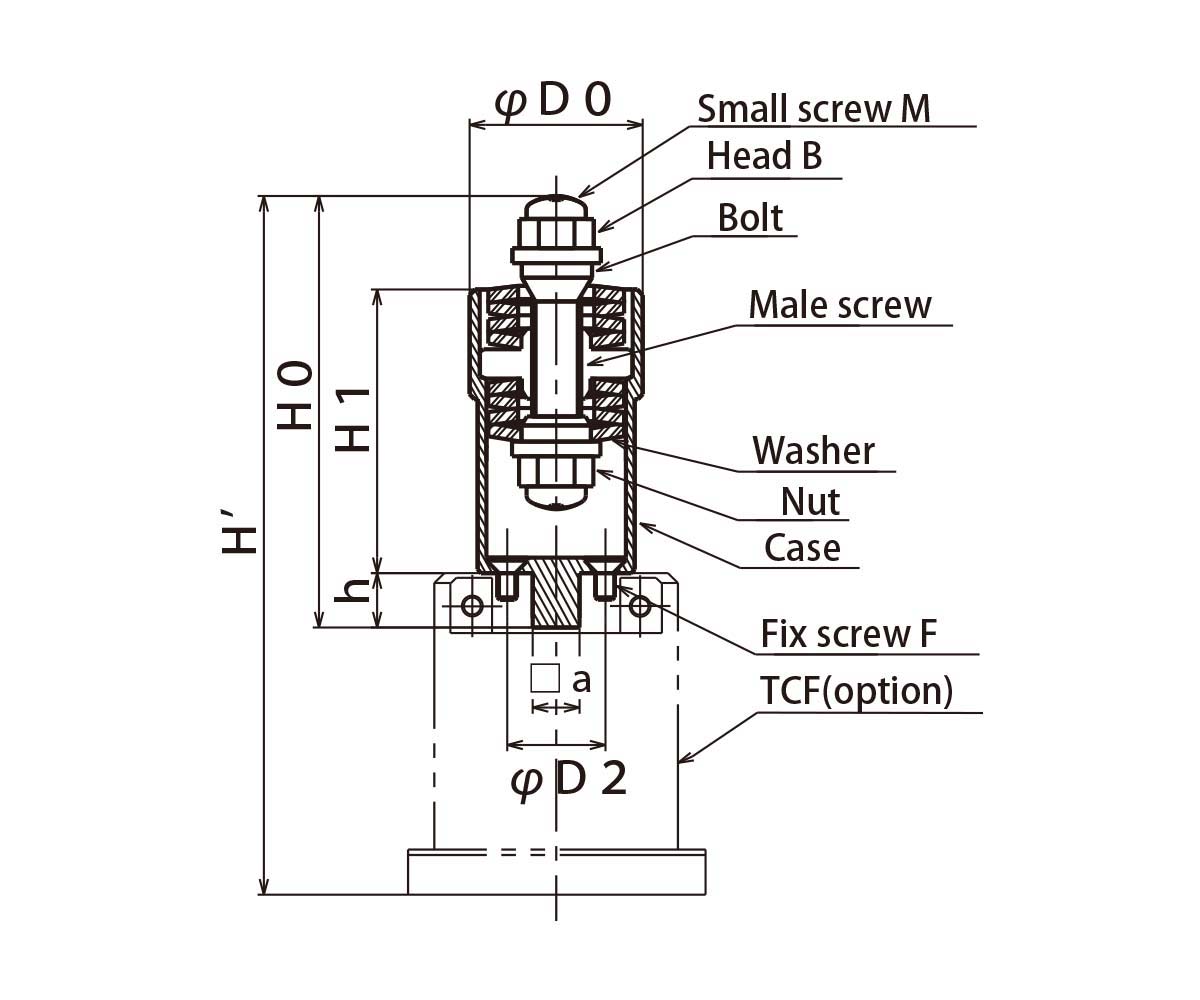

TP

product dimensions

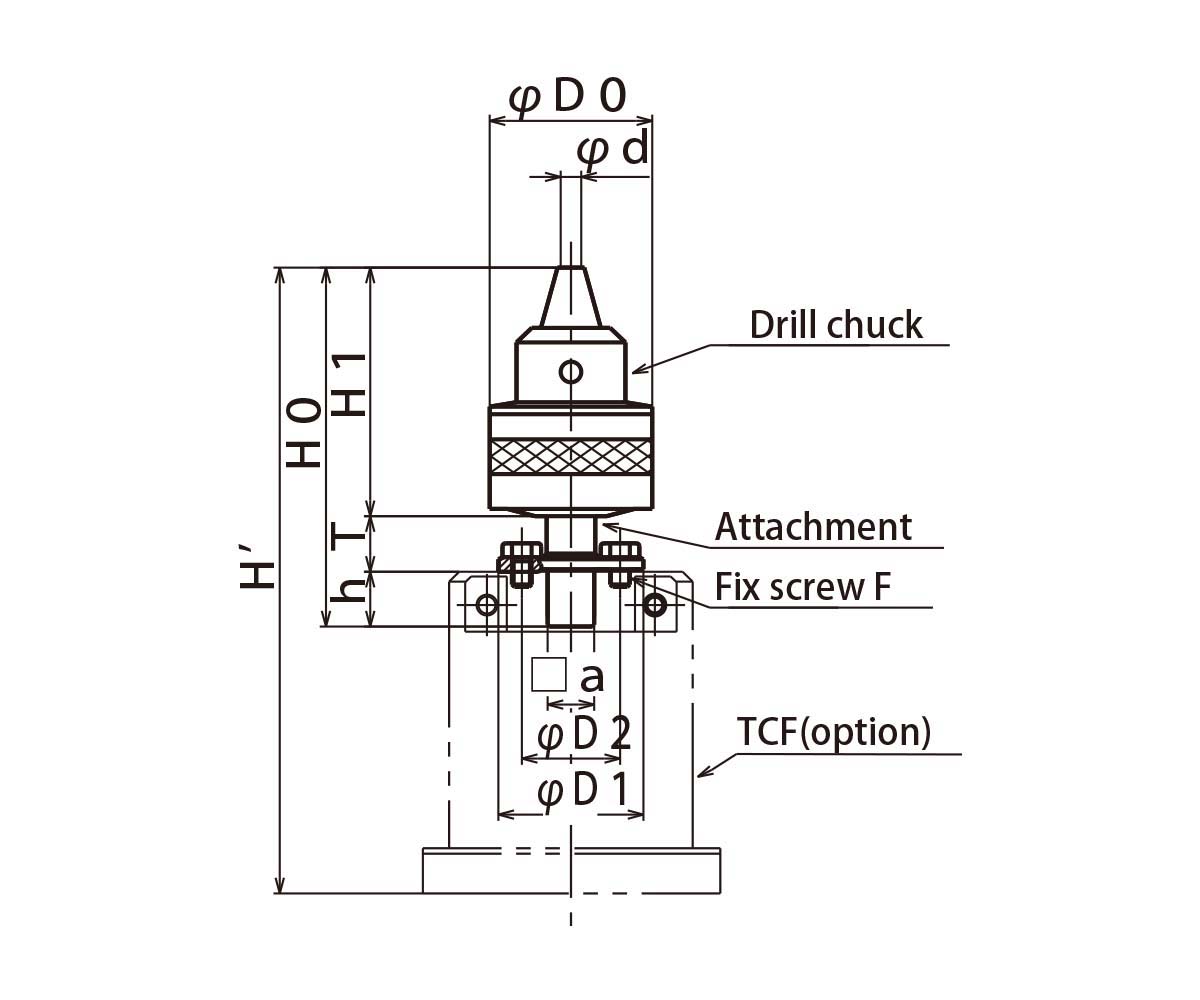

DTF

product dimensions

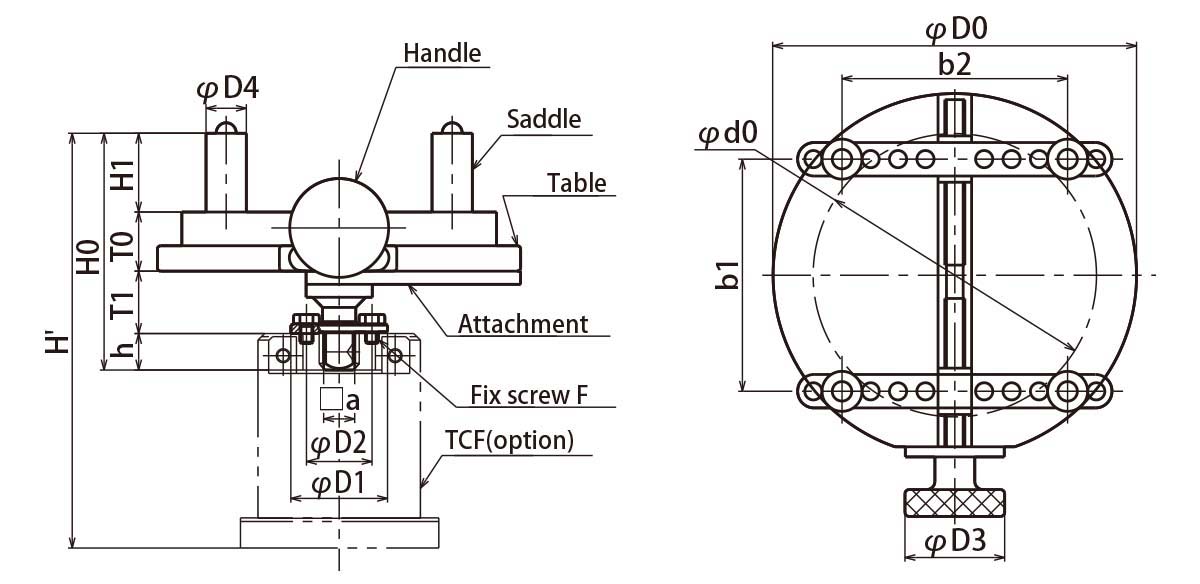

TTF+ATF
