QSP / QSP-MH

Torque Wrench

QSP / QSP-MH Preset Click Type Torque Wrench

Direction

RoHS Assembly Preset Ratchet Head Direct input type

Torque wrench for single purpose bolt tightening.
Preset style.
The set torque cannot be changed without using a special tool (sold separately), preventing the operator from changing torque by mistake.
A clear "click" sound signals tightening completion upon reaching the set torque.
The ratchet head has 24 teeth with a 15 degree operating range, allowing for use in space-limited working conditions.
Applicable for international use including the EU region.
Compliant with ISO 6789 Type II Class B calibration procedures.

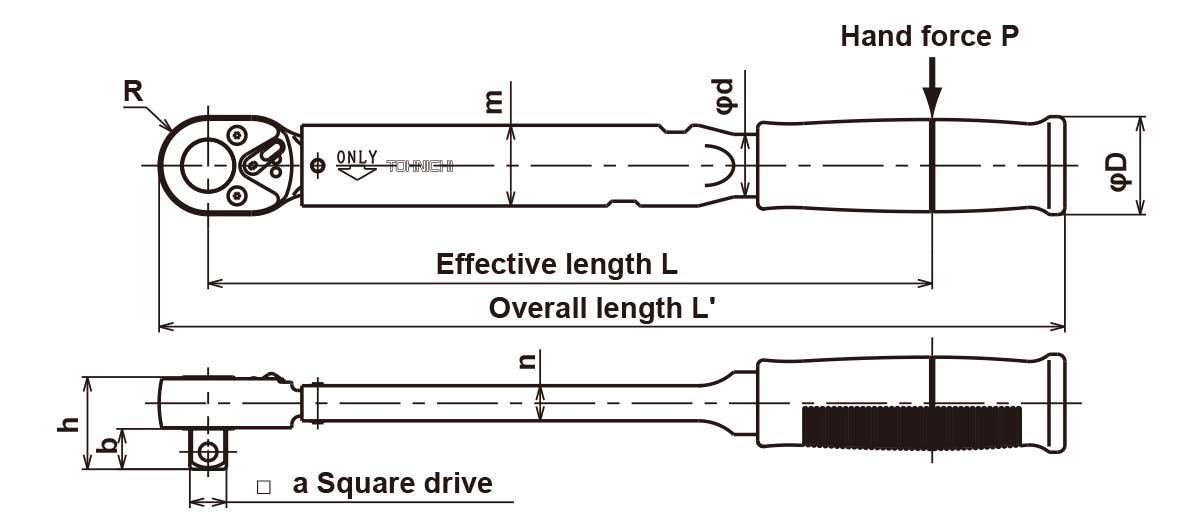

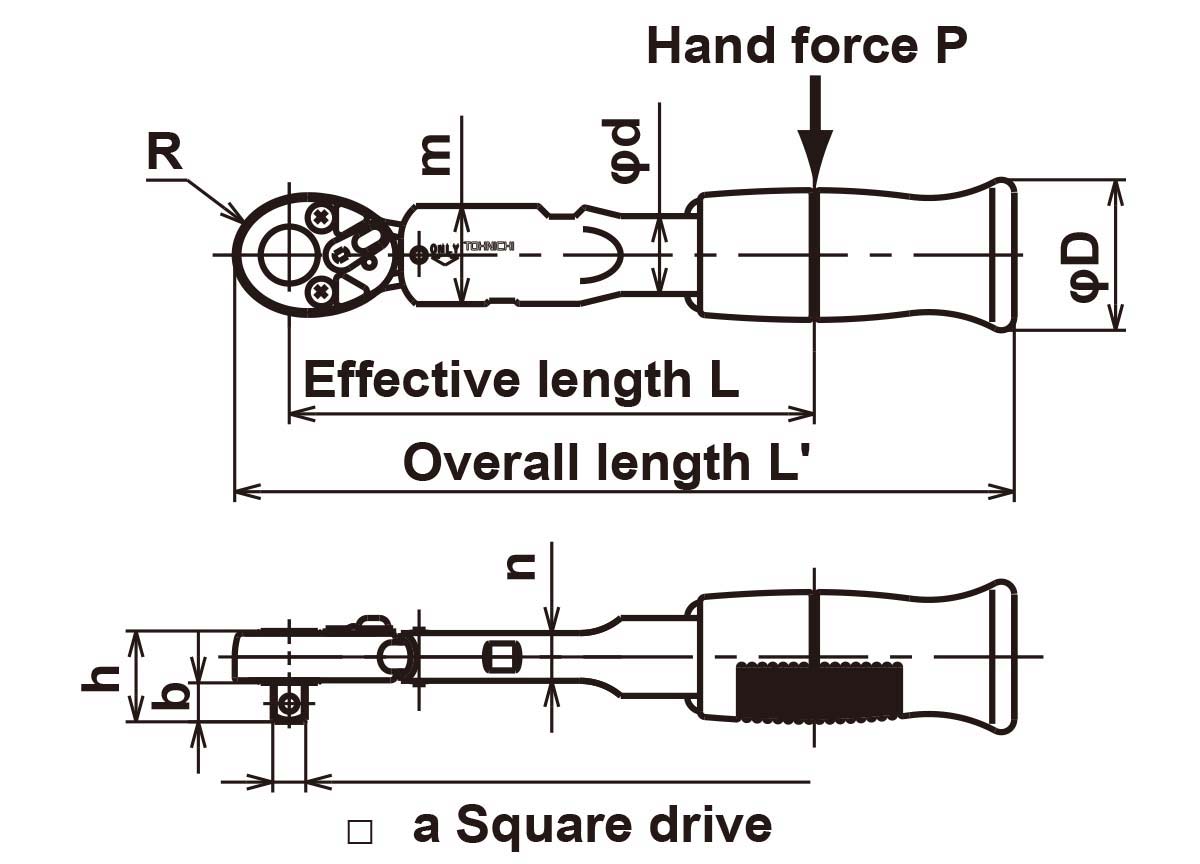

QSP100N4-MH [Overall length 315 mm]

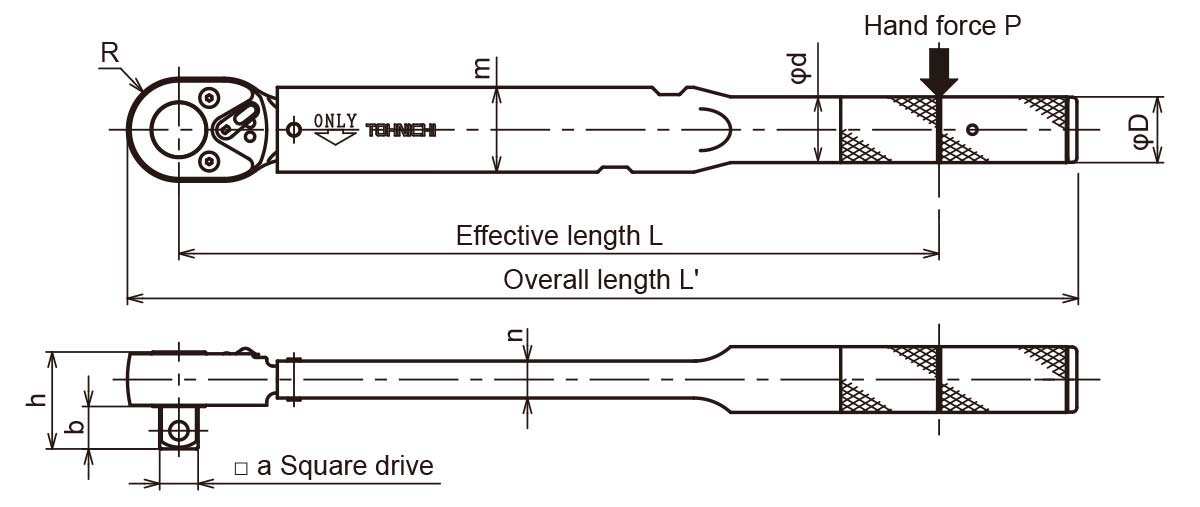

QSP100N4-MH [L'=315mm]

Accuracy ±3%
MODEL			QSP1.5N4	QSP3N4	QSP6N4	QSP12N4	QSP25N3-1/4	QSP25N3	QSP25N3-MH	QSP50N3	QSP50N3-MH
S.I. RANGE [N • m]			0.3～1.5	0.6～3	1～6	2～12	5～25			10～50
METRIC RANGE [kgf • cm]			3～15	6～30	10～60	20～120	50～250			100～500
AMERICAN RANGE [ lbf.in]			2.7-13.2	5.3-26.5	8.9-53.1	17.7-106.2	44.3-221.2			88.5-442.5
APPLICABLE BOLT	COMMON STEEL		M3(M3.5)	M4(M4.5)	M5, M6	(M7)	M8			M10
	HIGH TENSION		M2.5	M3(M3.5)	M4(M4.5)	M5, M6	(M7)			M8
MAX. HAND FORCE［N］			15	30	45	89	155			281
DIMENSION ［mm］	EFFECTIVE LENGTH	L	120			125	161			178
	OVERALL LENGTH	L'	165			175	215			240
	SQ. DRIVE	a	6.35					9.53
		b	7.5					11
	HEAD	R	11.5				13			16
		h	17.5				18.5	22		25.6
	BODY	m	19							25.5
		n	9.2							11.2
		d	15							20
		D	24				29		15	34	20
WEIGHT［kg］			0.16		0.19		0.25			0.4

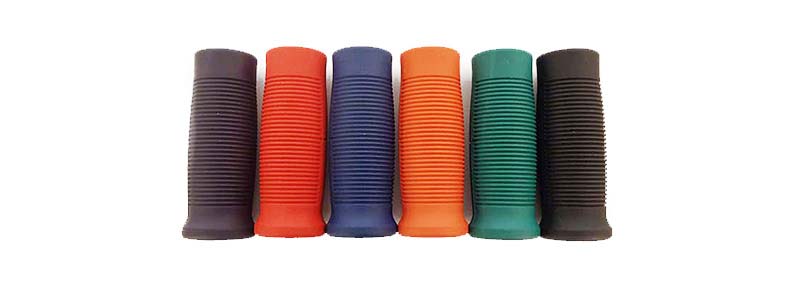

GRIP			Blue Colored Resin grip			Black Resin Grip			Knurled grip	Black Resin grip	Knurled grip
ADJUSTING TOOL (OPTIONAL ACCESSORY)			No.931							No.930

Accuracy ±3%
MODEL			QSP100N4-3/8	QSP100N4	QSP100N4-MH	QSP140N3	QSP140N3-MH	QSP200N4	QSP280N3-1/2	QSP280N3	QSP420N
S.I. RANGE [N • m]			20～100			30～140		40～200	40～280		60～420
METRIC RANGE [kgf • m]			kgf • cm 200～1000			300～1400		400～2000	kgf • m 4～48		6～42
AMERICAN RANGE [lbf.ft]			14.8~73.8			22.2~103.3		29.5~147.6	29.5~206.6		44.3~310
APPLICABLE BOLT	COMMON STEEL		M12(M14)			M16		(M18)	M20		(M22)M24
	HIGH TENSION		M10			M12		(M14)	M16		(M18)
MAX. HAND FORCE [N]			398			444		500	467
DIMENSION [mm]	EFFECTIVE LENGTH	L	251			315		400	600		900
	OVERALL LENGTH	L'	315			380		465	665		970
	SQ. DRIVE	a	9.53	12.7						19.5
		b	11	14				15.4		20.5
	HEAD	R	17			18.8		20	22.5		25.5
		h	29	32		33.5		38.4	39.9	44.5	46.5
	BODY	m	28					35			38.6
		n	12.2					15			16.1
		d	21.7					27.2			30
		D	34		21.7	34	21.7	27.2			40
WEIGHT [kg]			0.65			0.7		1.2	1.8		3.1
GRIP			Black Resin grip		Knurled grip	Black Resin grip	Knurled grip
ADJUSTING TOOL (OPTIONAL ACCESSORY)			No.930								No.315
