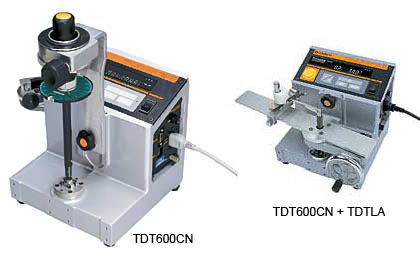

TDT
Torque Screwdriver Tester
Digital Torque Screwdriver and Small Wrench Tester
Ideal for Testing Click and Dial Indicating Torque Screwdrivers: Includes 2 Types of Interchangeable Loading Mechanisms
Optional TDTLA Loading Bar for Testing Small Capacity Torque Wrenches.
| S.I. = | Metric = | American = |
Accuracy
±1% + 1digit
| Model | Torque Range | Square Drive | Weight Approx. | |||||||||
| S.I. | Metric | American | Min.-Max. | Graduation | ||||||||
| S.I. | Metric | American | S.I. | Metric | American | mm | in | kg | lbs | |||
| TDT60CN | TDT6 | TDT6-A | cN.m 2-60 |
kgf.cm 0.2-6 |
in.lbs 0.2-5 |
cN.m 0.02 |
kgf.cm 0.002 |
in.lbs 0.002 |
6.35 Hex (Male) with a groove (0.7mm) |
Hex 1/4 Minus 1/32 Groove |
13.5 | 29 51/64 |
| TDT600CN | TDT60 | TDT60-A | 20-600 | 2-60 | 2-50 | 0.2 | 0.02 | 0.02 | ||||
| DATA MEMORY | 99 data |
| ARITHMETIC FUNCTION | Sampling, Maximum, Minimum, Mean |
| MEASUREMENT MODE | PEAK / RUN |
| ZERO ADJUSTMENT | Manual |
| DATA OUTPUT | RS232C (Printer: standard, personal computer: change by inside dip switch) |
| RESET | Manual /Auto (0.5 ~ 5.0 sec freely changeable by 0.1 sec.) |
| OPERATING CONDITION [°C] | Temperature 0 ~ 40 |
| POWER SOURCE AC[V] | 100 ~ 240 50/60Hz Auto shift. |
| Model |
| TDTLA |
